Thursday, August 5, 2010

HSMM BDA?

Most hams are probably not well experienced at operation at 900 MHz and above. Microwave propagation is a different animal for these folks.

Reading and understanding it and the expected path loss is one thing, and then real world experience is a whole another thing. You can then compound your confusion on expected performance by realizing that wide band spreading modes are yet another layer to the mix.

I built a simple analog 900 MHz repeater so that I could get a better idea of how signal propagation on the band. I was rather impressed. On the same token I was also impressed using the slower Aerocomm FHSS units on 900 MHz. But trying to draw comparisons between narrow to wide is a bad plan.

The XR-9 is a logical step for the average ham, with a modest tower. The versatility in data rates and ability to change the channel width from the default of 20 MHz spreading to a half-rate of 10 MHz and even a quarter rate of 5 MHz is ideal.

Overall in all the experimentation of wide band spread spectrum at 900 MHz and 2.4 GHz, from the Proxim Symphony, origional 900 MHz WaveLan, Ubiquiti Bullet to the XR-9, I feel the average ham will be mildly disappointed. (Also see David Rowe, VK5DGR's blog on Wifi is hard.)

All this stuff works great if you can get a central node/AP up high on a commercial tower. Not so great if you live in an established neighborhood with medium to mature size trees.

I have experienced the difference between 1 watt and adding a 10 watt BDA's on both bands. For the average ham, living in the city with a modest tower, this does improve things significantly, and provides something usable.

In light of the recent spread spectrum rule change, I would highly appreciate if TAPR would consider getting behind a BDA project.

I would appreciate if the ARRL would clarify how spread spectrum fits into the existing band plans on 902 and above.

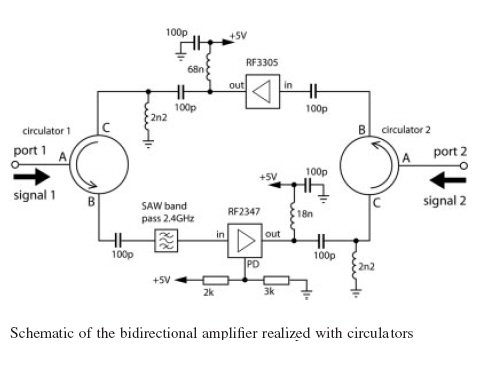

To help things along here is a recent article I stumbled into detailing construction and theory on a switchless bidirectional amplifier for 2.4 GHz using circulators.

The theory can be applied to BDA development for less crowded bands like 3 GHz, 5 GHz or even 900 MHz.

Most commercial bidirectional amplifiers use radio frequency (RF) switches which switch between two signal paths. Their switching time can cause data loss at a high transfer rate. For instance, with a data rate of 54 Mbit/s the time duration for 1 bit is 17.66 ns. Switching times of commercial available bidirectional amplifiers can be as high as 2 ms, causing a loss of more than 100 bits. There, bidirectional amplifiers realized as monolithic microwave integrated circuits (MMIC) bias a transistor circuit in such a way that it amplifies either in the one or the other direction......

In the following, a switchless bidirectional amplifier is discussed. It is compared against a bidirectional amplifier concept using RF switches as commonly used in commercial wireless communication systems....








Back in June 2007, L-com acquired HyperLink Technologies of Boca Raton, Florida.

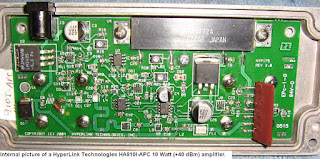

Below are some internal pictures of their 900 MHz 802.11 amplifier. Both their HA910I-APC and newer HA905I-DM are essentially the same.

The same variable attenuator input, M68772 RF power amplifier, and MD003 PIN diode switch. The newer model has much better heat dissipation, and runs at 12 volts in stead of 13.5 volts. So even the newer advertised 5 watt model is capable of more.

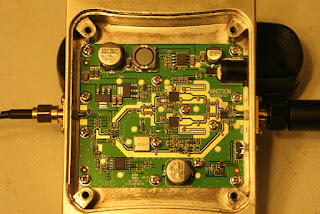

I don't like the idea of using Amplifiers on 2.4 GHz as the channels overlap and there is the potential to disrupt to many other users.  However there is a cheap amplifier 5-8 watt for that band, the EDUP EP-AB003 2.4GHz Amplifier for about $50-60.

https://www.youtube.com/watch?v=7GfsQZjTctY





Steve, KB9MWR

Tuesday, August 3, 2010

HSMM Mesh Network in Texas


In Collin County Texas a groups of hams have been making good use of HSMM technologies to update their Amateur Radio Communications Health-care Emergency Services (ARCHES). This was traditionally setup of two meter/ 70cm voice and packet radios at 9 Austin, Texas area hospitals.

The setup provides key patient data to the City of Austin Emergency Operations Center, during significant incidents, even if normal communications are unavailable. It's highly successful. During every activation, patient data and other traffic passed more quickly and accurately than all other techniques tested during the activations.

The ARCHES program has been so successful, we have been asked to expand the system to ~ 40 additional area hospitals and clinics in central Texas.

Due to the existing significant number of packet collisions using traditional packet radio with just 9 nodes, they are migrating to HSMM.

With 40 or more packet stations in the area, passing packet data could slow to a crawl due to packet collisions.

The stations could only transfer data at 1200 baud, at best. Attempts at using 9600 baud showed that common radios do not pass 9600 baud data well. They distort the data so badly, that many resends are needed to get data through.The effective data rate seldom exceeds 1200 baud.

The HSMM proof of concept was demonstrated least year by AD5OO, NG5V, and KD5MFW who achieved a 10 mile point to point link across downtown Austin, Texas using only 35mw.

The Austin HSMM SIG has incorporated Optimum Link State Routing (OLSR) into custom firmware to provide automatic linking of radios that will be placed on Water Towers throughout Collin County Texas.

For more info see: http://hsmm-mesh.org

Sunday, August 1, 2010

HSMM VOIP Network in Spain

There is an interesting HSMM/ Asterisk VOIP network in Spain:

http://translate.google.com/translate?hl=en&sl=es&u=http://www.bicubik.net/hsmmn/

Alex EA5HJX, Andres EA5HIQ, Pepe EA5SW, Paco EB5HTC, Javier EB5BXA, Boletin EA5SW, Paco EB5EA, Sergio EA5HFB, Ernesto EB5JDY and several other hams are researching new technologies and telecommunication systems.

Can you explain are in street language, What is Intended and this project will bring to ham radio and its benefits?

So we can all understand, a HSMM network is just one of many highway lanes that can move large amounts of data at high speed. What would be technologically wireless broadband network of high capacity in her ability to integrate all technologies: RF, VoIP, multimedia, data ....

What are the Objectives of the Project HSMMN?

To promote knowledge and new technologies to the general public: The HSMM project has not only a technical aspect but also a social aspect, with aims to bring new technologies and their application in the real world to the public with expertise or not. Disseminating knowledge and new technologies to the general public: The project has HSMMN Not Only But Also to Technical aspect of social aspect, with aims to bring new technologies and their application in the real world to the public with expertise or without them.

We intend that anyone interested can collaborate, learn and practice the knowledge acquired. Anyone interested can collaborate, learn and practice the acquired knowledge. To this end, talks and workshops are planned in various radio clubs and associations interested in the project. To this end, talks and workshops are planned in various radio clubs and Associations interested in the project.

Creation of a research group developing new technologies to the world of amateur radio: This project not only aims to develop the network, which is the chief end of it, but to bring together people interested in researching and learning about new technologies to help amateur radio operators and emergency services communications.

Unifcar technologies: using computer systems and hardware elements to create an IP data highway you can travel by all types of information: audio, video, telemetry, APRS, etc ...

Collecting, processing and sending information through a variety of different technologies such as for sending APRS weather information (winds, rainfall, air pressure, barometric pressure, etc)

Ability to provide automated voice announcements from a centralized control room radio repeaters as required. Capacity to Provide automatic voice announcements from a centralized control room radio repeaters as required.

Creating an information service of communications systems available by region, by using a geographic number to gain access from the fixed, mobile and IP (VoIP).

Integration of other communication networks: IRLP, DSTAR, WIRES-II, E-QSO, etc.

Interconnection of repeaters using wireless technologies: Wireless, WiMAX. Each repeater could put a computer capable of processing all the telephony and transform it into Voip (voice over IP) that is transported through the network to reach another repeater HSMMN and is decoded by joining together all repeaters creating a mesh. Each repeater Could put a computer capable of processing all the telephony and transform it into VoIP (Voice over IP). That Is Transported through the HSMM network Reaches Another repeater network and is decoded by joining together all repeaters creating a mesh.

The whole process will be use Free Software.


Entities in the world of emergencies communications in Spain have shown interest in this project as an additional operational tool to consider for future medium to long term. Access from the PSTN will be in collaboration with guifi.net. This is an area open, free and neutral telecommunications network built through a peer to peer agreement where everyone can join the network



It looks like a nice mix of HSMM, Asterisk SIP and app_rpt technologies.

Alex Casanova EA5HJX, writes that he is working to develop a box that is a router (IP), and Asterisk (VoIP) and gateway with radio (analog and digital radio). Maybe this box can help in disaster like Haiti. Around the HSMMN´s Project we are investigate to integrate Asterisk VoIP with analog or digital radios.
